Product Guide - GMMK Numpad
PRODUCT GUIDE
GMMK Numpad
Getting Started
Set-Up
What's in the Box?
• 1× GMMK Numpad with pre-lubed Glorious Fox Linear Switches and GPBT keycaps
• 1× 6 ft (1.83 m) Braided USB Cable
• 1× Switch Puller Tool
• 1× Keycap Puller Tool
• 14× Extra Screws
• 22× Extra Gaskets
Plug & Play
Connect the keyboard to an available USB port and the keyboard will automatically install all necessary drivers.
System Requirements
• Available USB port
• Windows 7+, MacOS, Linux
Software
Glorious CORE
Instructions for downloading Glorious CORE are available at the link below. CORE is not required to use the GMMK Numpad, but is needed to unlock a fully customizable experience - set keybinds, create custom macros, access more lighting effects, and save personalized keyboard profiles. (Windows OS only)
QMK
The GMMK Numpad is fully compatible with QMK Firmware.
Keyboard Layout

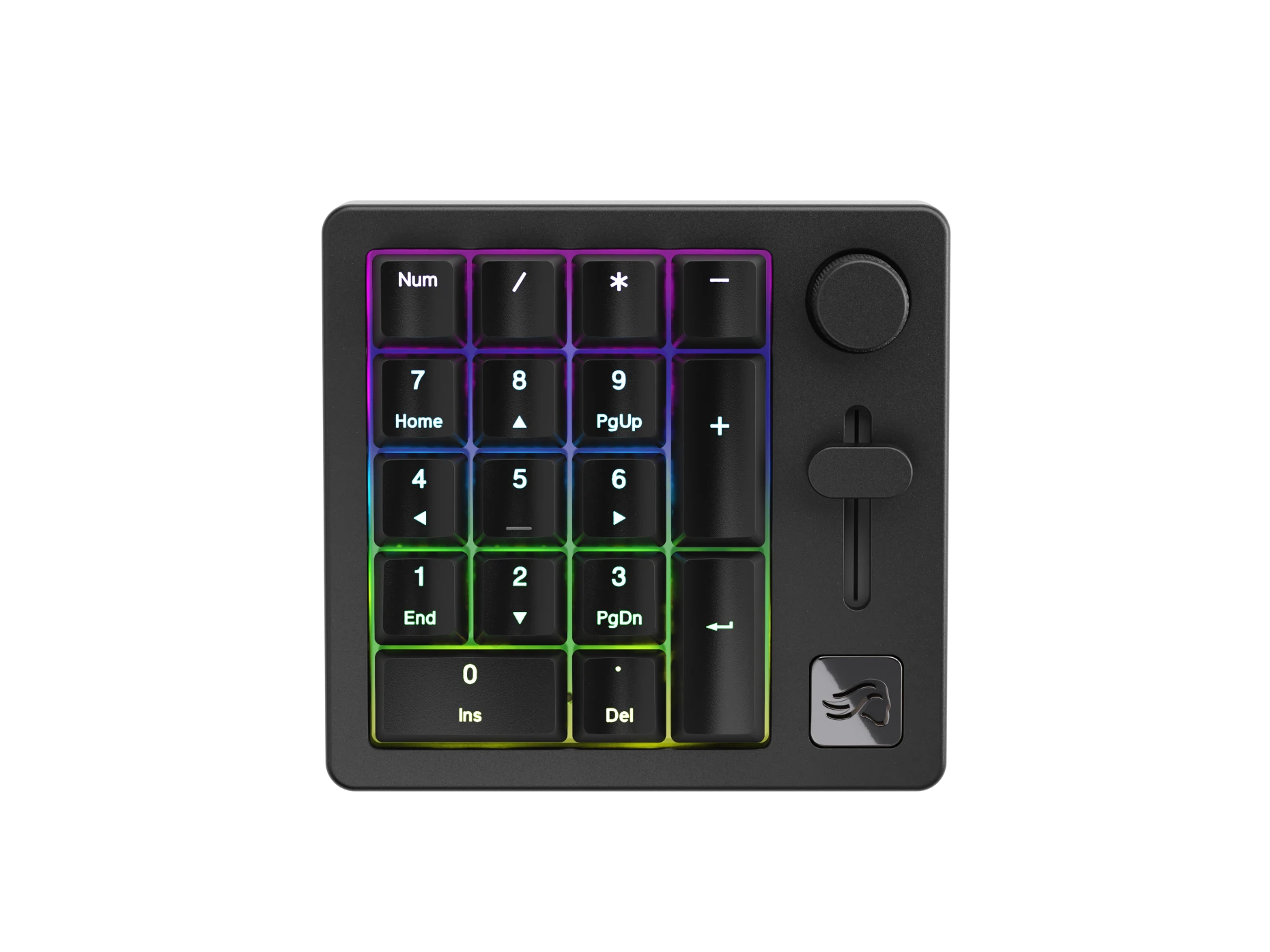

The GMMK Numpad has 17 keys, plus a pressable rotary knob and a slider.
How to Use
Hotkey Index
Primary Hotkeys
Enter Bluetooth® Pairing Mode
Num Lock + +
Disconnect Bluetooth®
Num Lock + -
Delete
Num Lock + .
Enter Bluetooth® Pairing Mode
Num Lock + +
Disconnect Bluetooth®
Num Lock + -
Delete
Num Lock + .
Other Commands
Restore Factory Default Settings
Num Lock + /
(Hold NUM for 3 secs, then press /)
Cycle Profiles
Up
Num Lock + 9
Down
Num Lock + 7
Cycle Layers
Up
Num Lock + 3
Down
Num Lock + 1
Restore Factory Default Settings
Num Lock + /
(Hold NUM for 3 secs, then press /)
Cycle Profiles
Up
Num Lock + 9
Down
Num Lock + 7
Cycle Layers
Up
Num Lock + 3
Down
Num Lock + 1
RGB LED Commands
Change Lighting Effect
Next
Num Lock + 6
Previous
Num Lock + 4
Change LED Brightness
Increase
Num Lock + 8
Decrease
Num Lock + 2
Cycle Active RGB Zone
Num Lock + 5
Change Lighting Effect
Next
Num Lock + 6
Previous
Num Lock + 4
Change LED Brightness
Increase
Num Lock + 8
Decrease
Num Lock + 2
Cycle Active RGB Zone
Num Lock + 5
How to Build
The GMMK Numpad is a mechanical keyboard featuring hot-swappable sockets and multiple other customizable features.
Changing Switches & Keycaps
The GMMK Numpad is a mechanical keyboard featuring hot-swappable sockets. It is recommended to use Glorious switches with your keyboard for optimal compatibility. However, the GMMK Numpad is also compatible with a variety of standard keyboard switches, including Cherry, Gateron, and Kailh branded switches.
A detailed how-to for hot-swapping switches and changing keycaps can be found here:
More Customization Options
Guides for replacing the Numpad top frame, switch plate, rotary knob, slider, badge, and more can be found here:
Product Specs
GMMK Numpad
Layout
17 Keys; 18 Keys including Pressable Rotary Encoder
Dimensions
4.7” x 4.5” x 1.6” (120 x 113.5 x 40 mm)
Weight
1.9 lb (.86 kg)
Typing Angle
6°
Body Material
CNC-Machined Aluminum
Mounting Style
Gasket Mount
Switch Sockets
5-Pin Hotswap; North-facing
Interface
USB-C 2.0
Battery Life
28 Hours (Max RGB);
76 Hours (RGB Off)
Layout
17 Keys; 18 Keys including Pressable Rotary Encoder
Dimensions
4.7” x 4.5” x 1.6” (120 x 113.5 x 40 mm)
Weight
1.9 lb (.86 kg)
Typing Angle
6°
Body Material
CNC-Machined Aluminum
Mounting Style
Gasket Mount
Switch Sockets
5-Pin Hotswap; North-facing
Interface
USB-C 2.0
Battery Life
28 Hours (Max RGB);
76 Hours (RGB Off)
Additional Links
Support
Questions or concerns regarding your Glorious keyboard can be directed to our support team.
Note that Glorious is unable to offer comprehensive support for third party firmware or parts (switches, keycaps, stabilizers, etc.) purchased from other companies.
Warranty
Important Notices
• 2-year limited manufacturer warranty
• Warranty does not cover damages resulting from opening the keyboard.
• Keycaps and other small objects could be swallowed.
• Keep out of reach of children below the age of 10.
Product Registration
Registering your product extends the warranty by an additional year (free of charge) on eligible devices. To be eligible, register your device within 365 days of date of purchase.
