Product Guide - GMMK 1 Tenkeyless
PRODUCT GUIDE
GMMK 1 Tenkeyless
Getting Started
Set-Up
What's in the Box?
• 1× GMMK 1 Mechanical Gaming Keyboard
• 1× Braided USB Cable
• 1× Switch Puller Tool
• 1× Keycap Puller Tool
Note: Barebones keyboards do not include switches or keycaps.
Plug & Play
Connect the keyboard to an available USB port and the keyboard will automatically install all necessary drivers.
System Requirements
• Available USB port
• Windows 7+, MacOS, Linux
Software
GMMK 1 Keyboard Editor
Instructions for downloading the GMMK 1 keyboard editor are available at the link below. This software is not required to use the keyboard, but is needed to unlock a fully customizable experience. (Windows OS only)
The GMMK 1 is not compatible with Glorious CORE.

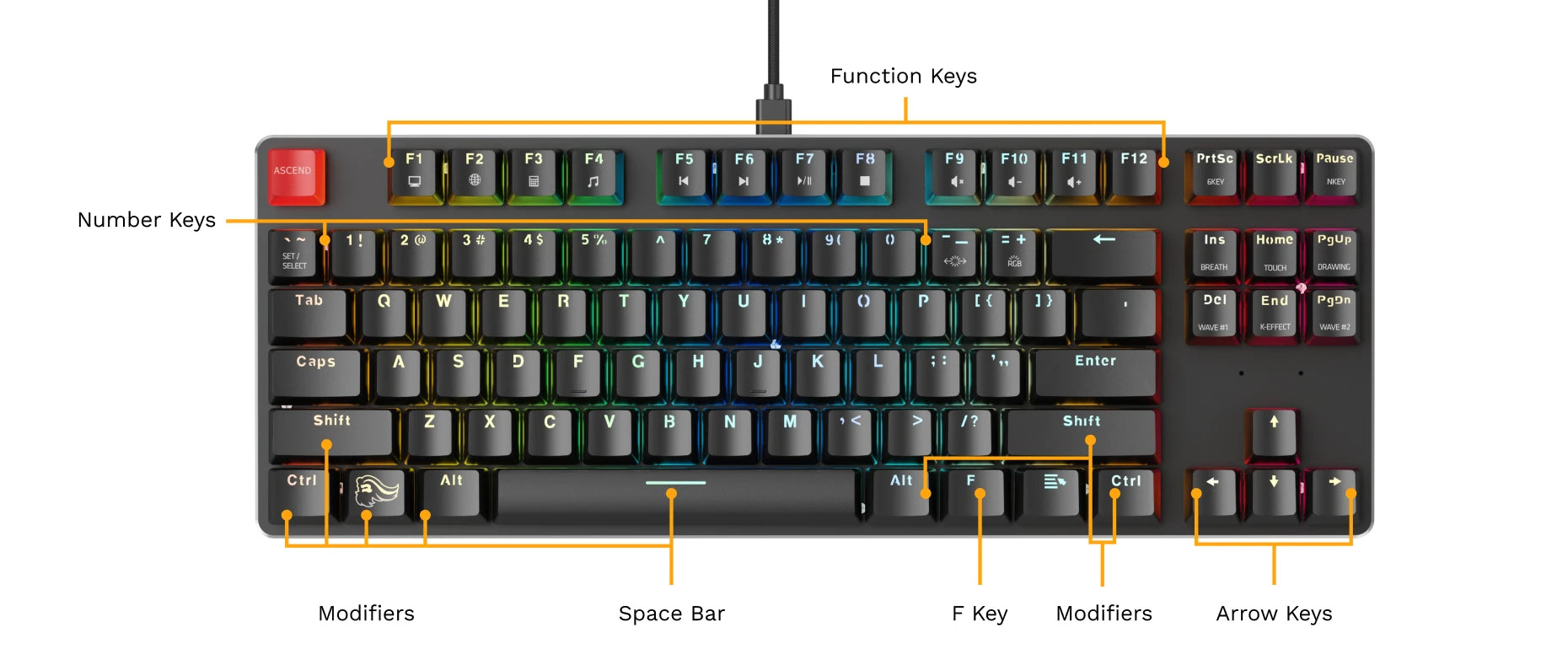

Keyboard Layout
The GMMK 1 Tenkeyless (TKL) does not have a numpad.
How to Use
Hotkey Index
Primary Hotkeys
My Computer
FN + F1
Play/Pause
FN + F7
Web Browser
FN + F2
Stop
FN + F8
Calculator
FN + F3
Mute
FN + F9
Media Player
FN + F4
Volume Down
FN + F10
Previous Track
FN + F5
Volume Increase
FN + F11
Next Track
FN + F6
Scroll Lock Change
FN + SCR LCK
My Computer
FN + F1
Play/Pause
FN + F7
Web Browser
FN + F2
Stop
FN + F8
Calculator
FN + F3
Mute
FN + F9
Media Player
FN + F4
Volume Down
FN + F10
Previous Track
FN + F5
Volume Increase
FN + F11
Next Track
FN + F6
Scroll Lock Change
FN + SCR LCK
Other Commands
Restore Keyboard to Factory Default Settings
FN + ESC then F1 + F3 + F5
(Hold for 10 Seconds)
Toggle between N-KEY Mode (Default) and 6-Key Mode
Keep this setting to N-Key if unsure what this means.
N-Key
FN + PAUSE
6-Key
FN + PRTSCN
Restore Keyboard to Factory Default Settings
FN + ESC then F1 + F3 + F5
(Hold for 10 Seconds)
Toggle between N-KEY Mode (Default) and 6-Key Mode
Keep this setting to N-Key if unsure what this means.
N-Key
FN + PAUSE
6-Key
FN + PRTSCN
LED Effects
Built-in LED Effects
Each effect listed here has three sub-effects accessed by using the hotkey to cycle through them.
Breath
• RGB Breathing
• Single Color Breathing
• Solid Single Color
FN + INS
Wave #1
• Wave with fade
• Wave with less fade
• Circular wave
FN + DEL
Touch
• Ripple outward from keypresses
• LEDs of pressed keys light up and fade
• LEDs spread to the row of a pressed key
FN + HOME
Wave #2
• Bouncing wave
• Solid single color
• Waves meet in middle
FN + PGDN
K-Effect
• LEDs randomly fade in and out
• LEDs turn on and off randomly
• Each row fades in and out
FN + END
Drawing
• Heartbeat effect
• Kamehameha effect
• Matrix-style effect
FN + PGUP
Each effect listed here has three sub-effects accessed by using the hotkey to cycle through them.
Breath
• RGB Breathing
• Single Color Breathing
• Solid Single Color
FN + INS
Wave #1
• Wave with fade
• Wave with less fade
• Circular wave
FN + DEL
Touch
• Ripple outward from keypresses
• LEDs of pressed keys light up and fade
• LEDs spread to the row of a pressed key
FN + HOME
Wave #2
• Bouncing wave
• Solid single color
• Waves meet in middle
FN + PGDN
K-Effect
• LEDs randomly fade in and out
• LEDs turn on and off randomly
• Each row fades in and out
FN + END
Drawing
• Heartbeat effect
• Kamehameha effect
• Matrix-style effect
FN + PGUP
RGB LED Commands
Change LED Brightness
Increase
FN + [↑]
Decrease
FN + [↓]
Change Lighting Effect Speed
Slower
FN + [←]
Faster
FN + [→]
Cycle LED Colors
(if applicable for current effect)
FN + =
Change Effect Direction
FN + -
Turn Off LEDs
FN + ESC
Change LED Brightness
Increase
FN + [↑]
Decrease
FN + [↓]
Change Lighting Effect Speed
Slower
FN + [←]
Faster
FN + [→]
Cycle LED Colors
(if applicable for current effect)
FN + =
Change Effect Direction
FN + -
Turn Off LEDs
FN + ESC
How to Build
Changing Switches & Keycaps
The GMMK 1 is a mechanical keyboard featuring hot-swappable sockets. It is recommended to use Glorious switches with your keyboard for optimal compatibility. However, the GMMK 1 is also compatible with a variety of standard keyboard switches, including Cherry, Gateron, and Kailh branded switches.
A detailed how-to for hot-swapping switches and changing keycaps can be found here:
Product Specs
GMMK 1 TKL
Layout
Tenkeyless
87 Keys (ANSI); 88 Keys (ISO)
Dimensions
14” x 5.1” x 1.4” (356 x 129 x 35.9 mm)
Weight
1.94 lb (.88 kg)
Mounting Style
Tray Mount
Switch Sockets
3-Pin Hotswap
Interface
USB-C 2.0
Layout
Tenkeyless
87 Keys (ANSI); 88 Keys (ISO)
Dimensions
14” x 5.1” x 1.4” (356 x 129 x 35.9 mm)
Weight
1.94 lb (.88 kg)
Mounting Style
Tray Mount
Switch Sockets
3-Pin Hotswap
Interface
USB-C 2.0
Additional Links
Support
Questions or concerns regarding your Glorious keyboard can be directed to our support team.
Note that Glorious is unable to offer comprehensive support for third party firmware or parts (switches, keycaps, stabilizers, etc.) purchased from other companies.
Warranty
Important Notices
• 1-year limited manufacturer warranty
• Warranty does not cover damages resulting from the changing of keycaps or switches.
• Keycaps or other small objects could be swallowed.
• Keep out of reach of children below the age of 10.
Product Registration
Registering your product extends the warranty by an additional year (free of charge) on eligible devices. To be eligible, register your device within 365 days of date of purchase.
